This is a high quality BRAND NEW turbocharger Unison Ring / Nozzle Ring kit, vanes, compressor wheel and repair kit/ rebuild kit.  Oem part no.: 3C3Z-6C885-A

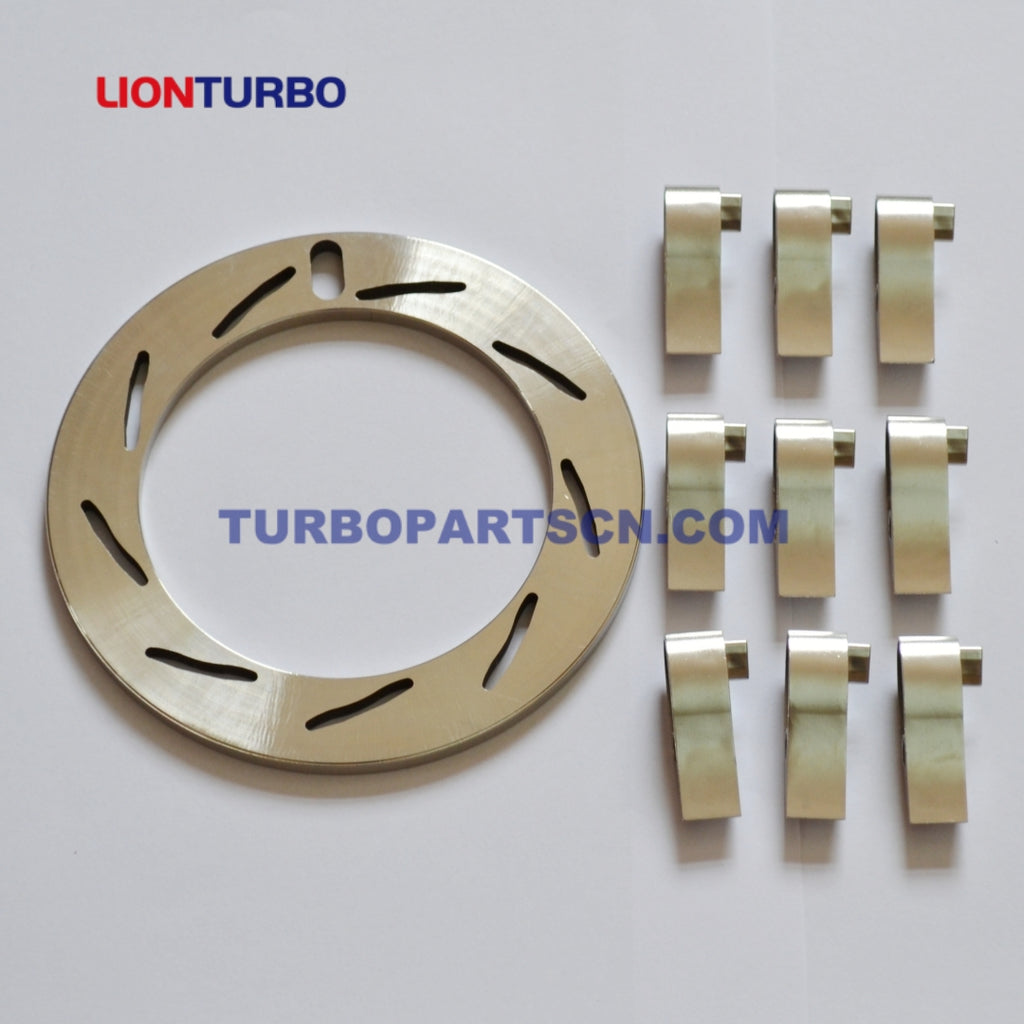

CONTENT: 1 Unison Ring Nozzle Ring + 9 Vanes ( Vanes' height 13.2mm) + 1 compressor wheel ( inducer diameter 56.87mm) + 1 set repair kit / rebuild kit

It fits Garrett turbocharger model GT37VA, GT3782VA, GT3788VA.

Application:

 A. Ford F250 Powerstroke, 239KW, Engine: Navistar, Capacity: 6.0L,  year: 2003-2007

 B. Ford F350 Powerstroke, 239KW, Engine: Navistar, Capacity: 6.0L,  year: 2003-2007

 C. GM Sierra 3500 / 2500 HD, 227KW, Engine: LLY Duramax V8, Capacity: 6.6L, year: 2004-2006

 D. GM Savana 3500, 227KW, Engine: LLY Duramax V8, Capacity: 6.6L, year: 2004-2006

 E. Chevrolet Express 3500, 227KW, Engine: LLY Duramax V8, Capacity: 6.6L,  year: 2004-2006

 F. Chevrolet Silverado 2500 HD / 3500, 227KW, Engine: LLY Duramax V8, Capacity: 6.6L,  year: 2004-2006

The vanes size: height=13.2mm, length=44.61mm (please double checking your old vanes size, if it is different from ours, please contact us.)

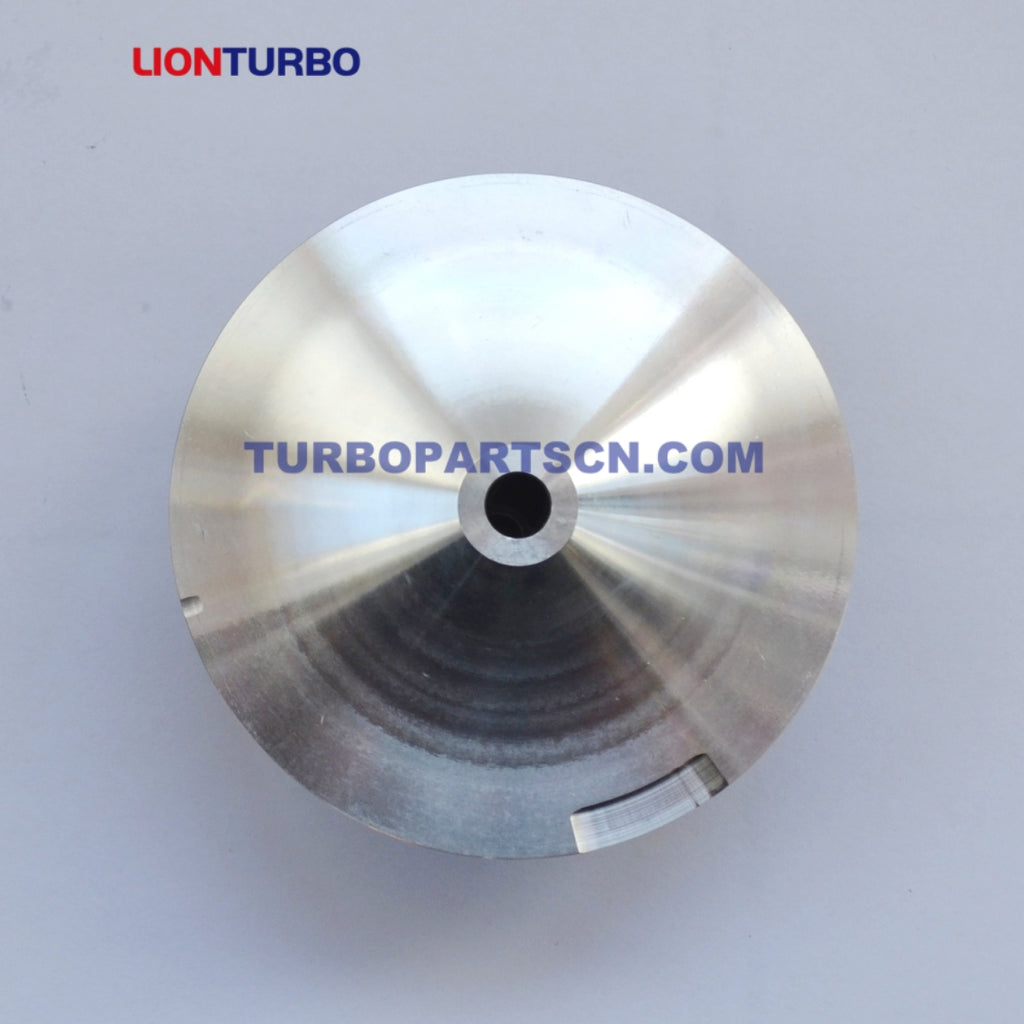

The compressor wheel size: A=56.87MM, B=82.00MM, C=6.25MM, D=37.00MM, E=7.48MM,

BLADES: 7 long / 7 short (please refer to the draft, and double checking your old compressor wheel size, if it is different from ours, please contact us.)

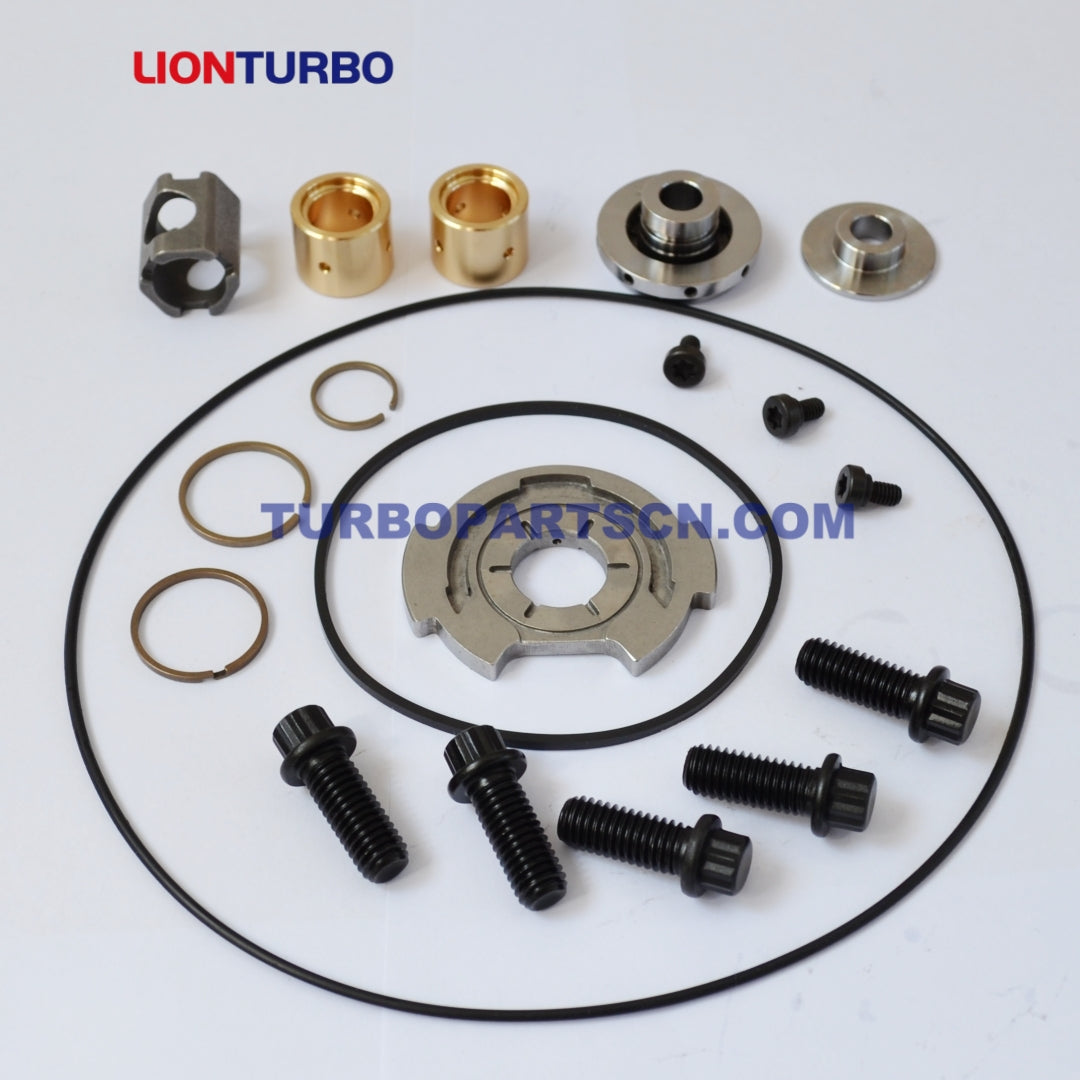

The repair kit including:

Thrust bearing  * 1pc  (360° upgraded)

Journal bearing  * 2pcs

Piston ring  *2pcs (turbin end, including one upgraded interlocked gap ring)

Piston ring *1pc (comp. end)

Thrust flinger  *1pc

Thrust collar  *1pc

" O " ring  *1pc  (brg hsg)

"O" ring *1pc (comp. hsg)

Spacer  *1pc

Screw  * 3pcs (small)

Screw  * 5pcs (big)

PLEASE DOUBLE CHECKING THE DIMENTION OF COMPRESSOR WHEEL AND VANES
